This page is for customers that have purchased our floor lamp kit or the .dxf files and need help with assembly. If you need to buy the .dxf file now, click here.

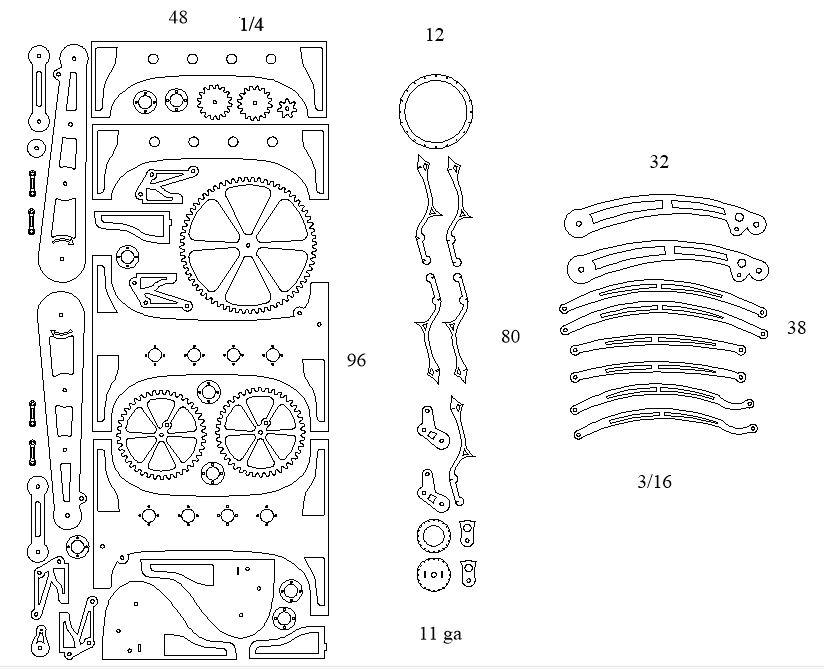

Material Required:
1/4 steel 48 x 96 in.
11 ga steel 12 x 80 in.
3/16 steel 32 x 38 in.
Shown here with laser cut plastic discs, springs, and an old refrigerator light bulb added. If you want the dxf files for the discs (or you need me to SUPPLY the discs) contact me after purchase.
The large hardware is all 1/2 inch. Start with a long length of threaded rod and cut pieces to length as needed. There are a lot of 1 inch diameter tubes. Start with a long length of tubing and cut pieces to length as needed.
98 inches tall when fully extended and used with the pedestal base.
